BRAUER Swing Clamp １０１６－１０ （１８ｋＮ） with Flange : スイング・クランプ１０１６－１０

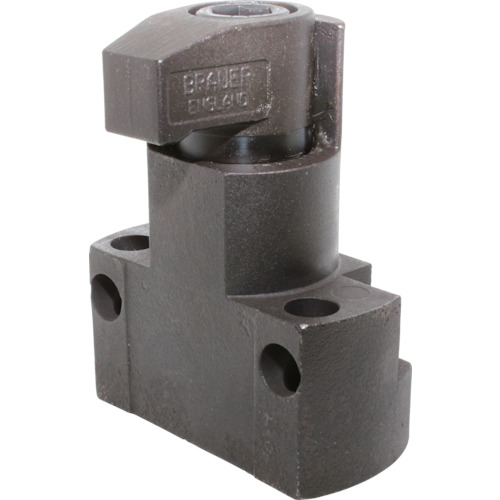

BRAUER Swing Clamp 1016-10 (18kN) with Flange 1016-10

● Use a hexagon wrench to clamp.
● It can be attached to the side of the jig.
● The clamp arm can be rotated 90°, so it does not interfere with work setting.

● For clamping work pieces on machine tools.
● For manual clamping of jigs and equipment.

● When the tightening bolt is loosened, the arm pressure rises due to the spring pressure.

BRAUER Swing Clamp 1016-10 (18kN) with Flange 1016-10 Features

●Width (mm): 31
●Height (mm): 74
●Length (mm): 64

●Flange swing clamp
●Tightening bolt: M10
●Maximum tightening force: 18kN
●Maximum holding force: 20kN
●Stroke: 5 mm
