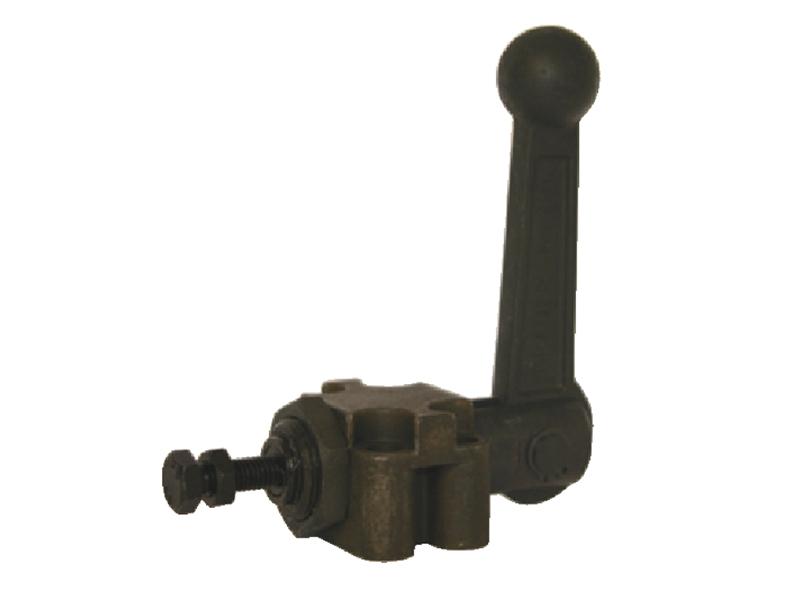

BRAUER cam push clamp CP2000 (6.5kN) クランプ

BRAUER cam push clamp CP2000 (6.5kN) CP2000

● High durability is achieved by surface hardening all component parts.
●Clamping speed is optimized by using a two-stage cam.
●If there is no clearance in the height direction, you can use it by tilting the handle.

● For one-touch clamping of workpieces on machine tools.
● For manual clamping of jigs and equipment.

● The clamp is structured so that it is difficult to release it due to vibration, but please pay close attention when machining a workpiece.

BRAUER cam push clamp CP2000 (6.5kN) CP2000 features

●Width (mm): 50
●Height (mm): 121
●Length (mm): 84

●Push clamp
●Maximum tightening force: 6.5kN
●Maximum holding force: 20kN
●Fast-forward stroke: 7mm
●Clamp stroke: 3mm
